union butt weld ends

KH-1023
union butt weld ends

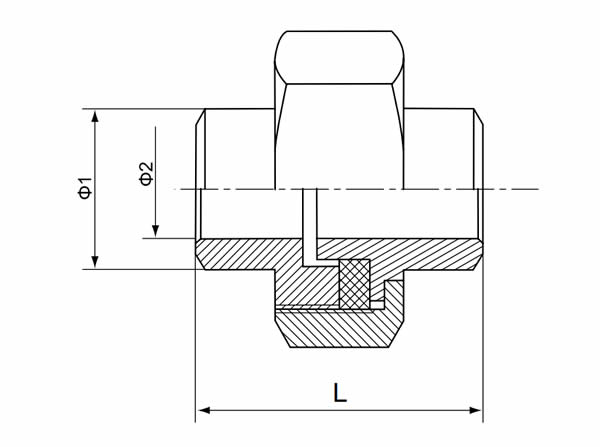

Stainless steel Union is used to connect the pipeline, it is a 3 part structure, there is an nut in the middle part of the union, so the unions can be fixed and removed easily. Also, the unions have different connecion end types: male thread, female thread and butt welding type. According to different application area, the connection types can be composited flexibly according to different requirements. Like Male thread + Female Thread; Male thread+Male Thread; Female Thread+Butt Weld.
 \

 \

Product name Stainless Steel Pipe Union Teflon Flat Butt Weld
material Stainless steel S/S 304,316,304l,316l,430,409 etc. Carbon steel and certain alloy steel.
size 1/8''-4''
DN6, DN6, DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100.
thread NPT, DIN2999, BSP, BSPT, BSPP, PT,PF
pressure 150 lbs
surface threatment Polished,sand blast
standard ISO9001:2008, CE, PED 97/23/EC
main products Elbow45.,90.,street elbow,tee,cross,hex nipple,red socket M/F,plug,socket banded,hex cap,round cap,
nut, bushing,union, coupling, SPE, SPU,hose nipple, welding nipple, barrel nipple, parrel nipple
AMR,auto parts,Sanitary union,Sanitary fitting,Sanitary valve
technics Investment casting / Seamless Pipe Machining
technology Silica Colloidal Solution craft

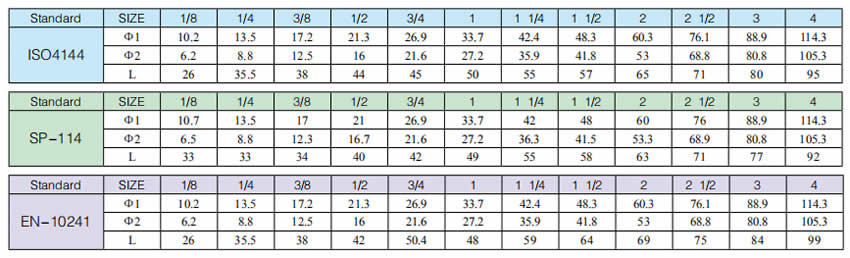

Dimension conform to ISO4144, SP114, EN-10241, JIS
Sample Making Available, Free sample with freight collect
Package Plastic bag,bubble bag, cartons, wooden pallet,wooden box
Custom Available, customize as your design,photo,drawing
Payment terms 30% prepayment T/T,balance against B/L; L/C.
after-service Replacement for free if there is any quality problem
Lead time Usually no more than 30 days, according to your quantity
